Wireline Express comprises a diverse inventory of Tool Taxis and Guides to suit a wide range of wireline tools and log applications:

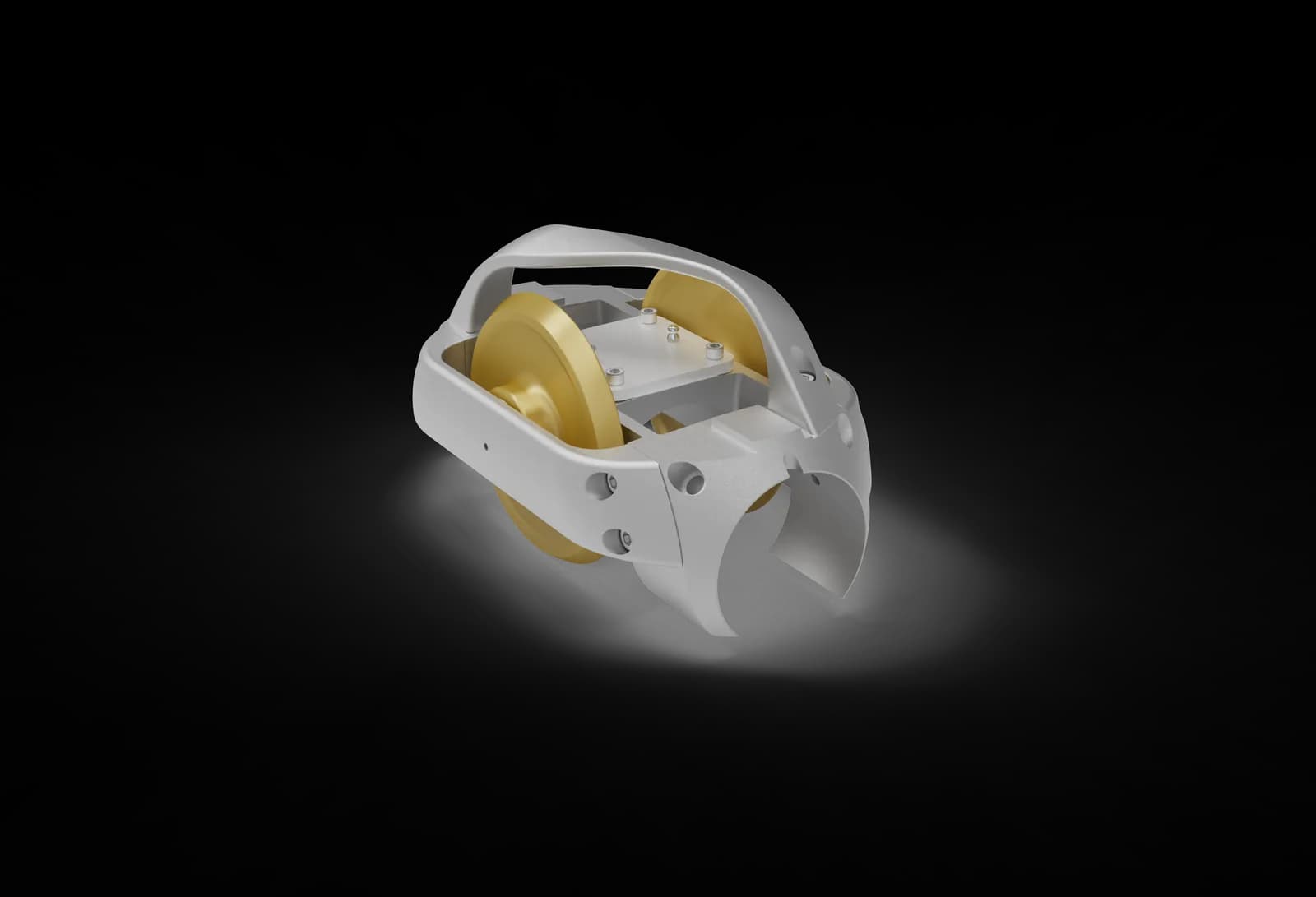

  • Tungsten Carbide tool taxis for all petrophysical tools: Hole sizes > 8” and Deviation < 70°
  • Ball bearing tool taxis for all petrophysical tools: Hole sizes > 8” and Deviation > 70°

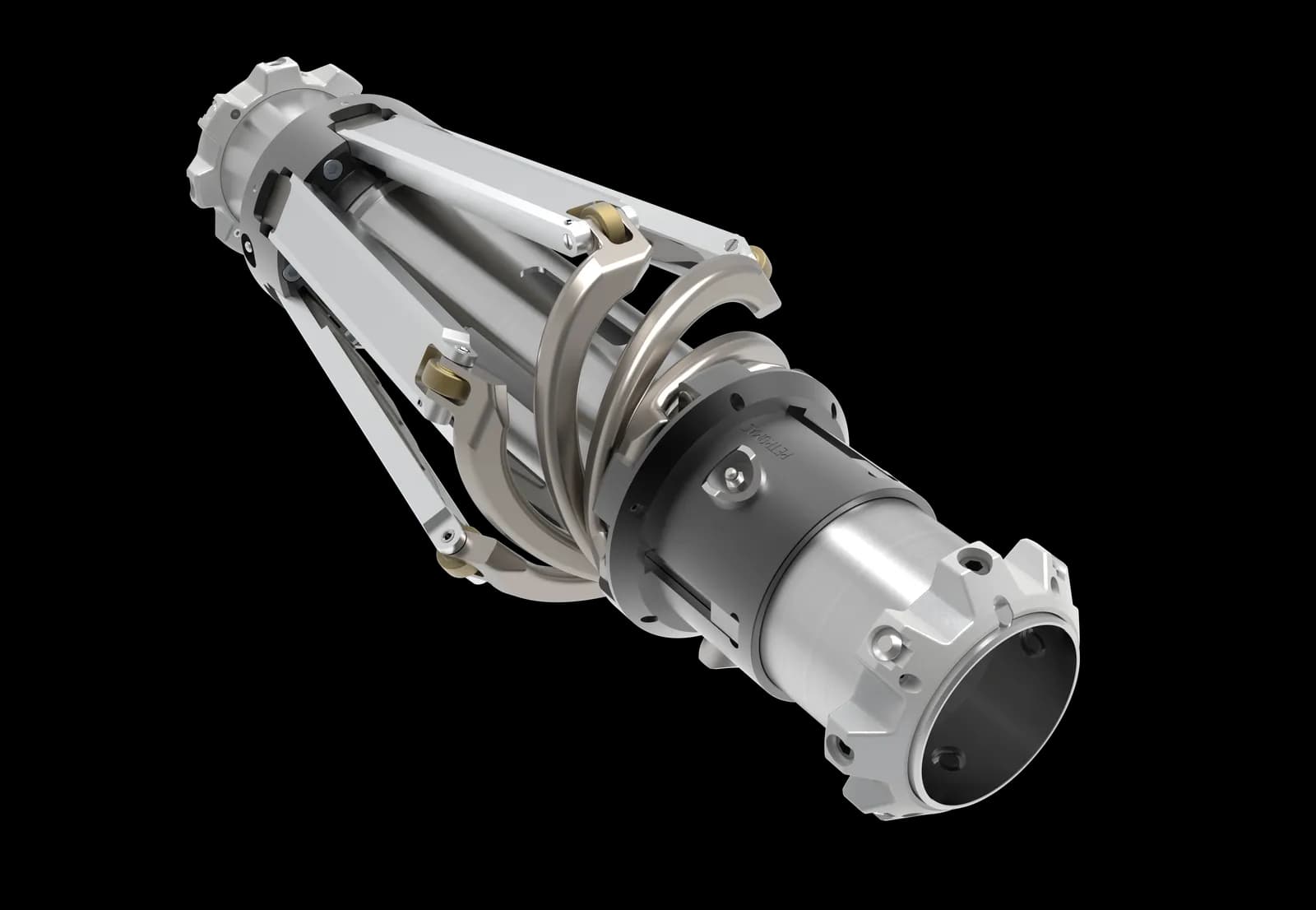

  • Centralizing wheel system for deviated wellbore/casing sizes between 8 to 9 inches.
  • Taxis for reservoir sampling applications in wellbore sizes > 8” and deviations upto 80°
  • Slim hole equipment for SLB petrophysical tools (no reservoir sampling yet)
  • Guides to suit a variety of tools

  • Fits a 3 5/8” logging tool and a 3 3/8” tool housing (via a sleeve). Other versions, TTA-705 and TTA-715 are also available with a 3.7” bore.

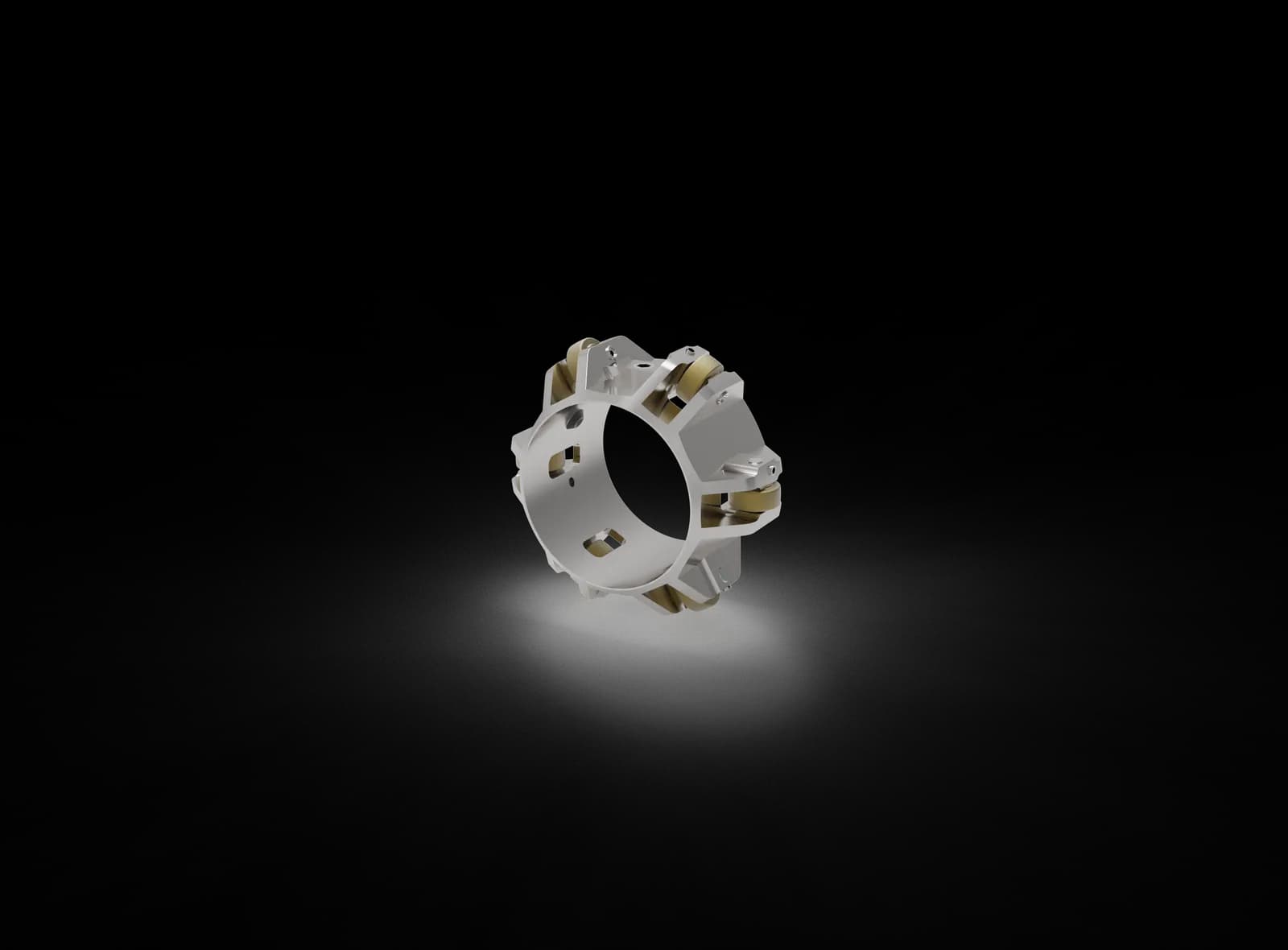

  • Standoffs are given for a 3 5/8” logging tool in 8.5” wellbore

Specifications

Model

35805/515

35815/515

TTB-X-515

Weight, lbs.

26

26

28

Length, in

11.4

10.4

11.6

Volume, ft3

0.05

0.05

0.06

Min. Hole size, in

8”

8”

8.5”

Max. Hole size, in

17.5”

24”

8.5”

Drag coefficient, dynamic

5% (TTA) / 2% (TTB)

5% (TTA) / 2% (TTB)

2%

Temperature rating, oF

350

350

350

Pressure rating, psi

30,000

30,000

30,000

Taxi OD, in

7 ¼”

7 ¼”

7.7”

Wheel Diameter

6”

6”

6”

Taxi Bore1, in

3 5/8”

3 5/8”

3 5/8”

Standoff in 8.5” wellbore2

0.5”

1.5”

N/A

Materials

Castings

17-4 PH SS, Heat treated H1150

Bearings

Tungsten Carbide composite / Custom Ball Bearings

Diaphragm

Nitrile / Viton

Fastenings

304 Stainless steel Hex socket cap screws -1/4”, 3/16” hex, UNC thread

Attachment

Alloy steel grub screw, ¼ ” hex, UNC thread, dog end type

Grease - lubrication unit

Lubriplate 930AA

SWL for Fishing, lbs.

50,000

50,000

50,000

SWL Shear Set Screws, lbs.

8,500

8,500

8,500

Model

TTB-S 75

TTB-S 85

Weight, lbs.

22

32

Length, in

9.5

10.5

Volume, ft3

0.04

0.06

Min. Hole size, in

8”

9.5”

Max. Hole size, in

14.75”

17.5”

Drag coefficient, dynamic

2%

2%

Temperature rating, oF

350

350

Pressure rating, psi

30,000

30,000

Taxi OD, in

7.5”

8.5”

Wheel Diameter

6”

6.25”

Taxi Bore1,2, in

4.75”

5”

Standoff

0.6” (8.5” wellbore)

0.6” (12.25” wellbore)

Materials

Castings

17-4 PH SS, Heat treated H1150

Ball Bearings

Custom

Diaphragm

Nitrile / Viton

Fastenings

304 Stainless steel. UNC threads. Hex keys ¼”, 3/16”

Grease - lubrication unit

Lubriplate 930AA

SWL for Fishing, lbs.

50,000

SWL Shear Set Screws, lbs.

8,5003

TTC-IL6

Weight, lbs.

32.8

Length, in

17.75

Volume, ft3

0.11

Min. Hole size, in

6.0

Max. Hole size, in

8.0

Drag coefficient, dynamic

4%

Temperature rating, oF

350

Pressure rating, psi

30,000

Taxi OD, in

5.25”

Wheel Diameter

4.0”

Connection 1

In-line with all through wired tools

Standoff in 6” wellbore2

0.44”

Materials

17-4 PH SS, Heat treated H1150

Bearings

Tungsten Carbide Composite

Diaphragm

Nitrile / Viton

Fastenings

304 SS. UNC thread. Hex key 3/16”

Grease - lubrication unit

Lubriplate 930AA

SWL for Fishing, lbs.

30,000

AHF-C
Adjustable Guide (SLB)

Length, in

35”

Weight, lbs.

36

Volume, ft3

0.124 (including bottom nose adapter)

DOD, in

4” (at no-go collar)

Nose Angle

Adjustable – 3/4/6/9 degrees

Maximum step ledge1

Up to 5” depending on setting

Min. Hole size, in

5”

Max. Hole size, in

No Limit

Temperature rating, oF

400

Pressure rating2, psi

20,000

Materials

Body

17-4 PH SS, Heat treated H1150

Pivot pin / Angle setting pin

17-4 PH stainless steel16mm dia

Nose

Aluminum

SWL for fishing, Tensile

33,400 lbf

Compressive strength

33,400 lbf

Holefinder Model

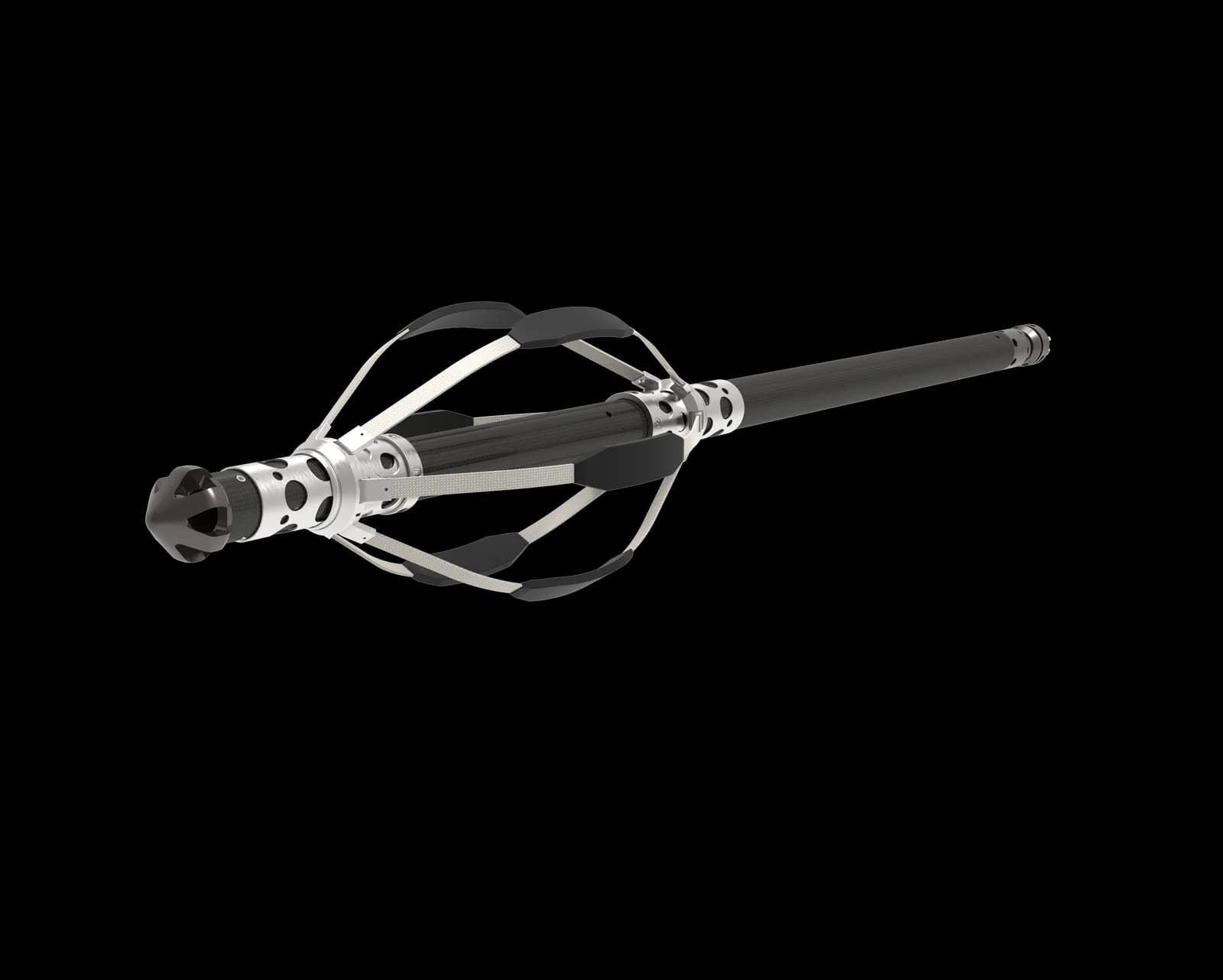

  • Petromac’s wheeled carriages align the holefinder nose upward.
  • Holefinder will slide over a step ledge up to 6 inches high
  • Adjustable nose angle for different hole sizes
  • Petromac supplies a range of fixed angle and adjustable angle holefinders.

Specifications



AHFC

HFJ9

HFB6

SWHF

Application

Through wired
tools (SLB)

J-Latch
(HAL)

Through wired
tools (BHGE)

Independent Orientation Assembly
(HAL, BHGE)

Length (in)

35

17.2

45

168

Weight (Ib)

36

16

32

268

OD (in)

4

3.625

4

3.625

Borehole size min. (in)

5

8.5

5

5

Borehole size max. (in)

N/A

N/A

N/A

N/A

Temperature Rating (degF)

400

350

350

350

Pressure Rating (psi)

30,000

30,000

30,000

30,000

Nose Angle (deg)

3/4/6/9

9

6

3/4/6/9

SWL for Fishing, Tensile (Ib)

33,400

11,000

33,400

33,400

Compressive Strength (Ib)

33,400

11,000

33,400

33,400



Petromac Intellectual Property


At Petromac we design and manufacture a broad range of bespoke devices particularly for the wireline logging industry. Petromac devices provide a quantum improvement for both the wireline logging companies and the operators we serve to deliver significant cost and time saving benefits.

The technology behind Petromac devices is, of necessity, protected by patents in multiple jurisdictions. Below is a list of granted patents. While we endeavour to keep this list updated, this list may not be exhaustive. Petromac is currently progressing many other patent applications (17 as of Aug 2020).


Jurisdiction

Granted Patent

Title

United States of America

US9,863,198

Sensor Transportation Apparatus and Guide Device

United States of America

US10,364,627

Sensor Transportation Apparatus and Guide Device

United States of America

US10,612,333

Wellbore Logging Tool Assembly

China

CN104919132

Sensor Transportation Apparatus and Guide Device

France, Netherlands, Norway, United Kingdom

EP2920405

Sensor Transportation Apparatus and Guide Device

Malaysia

MY-169945-A

Sensor Transportation Apparatus and Guide Device

Russia, Armenia, Azerbaijan, Belarus, Kazakhstan, Kyrgyzstan,Tajikistan and Turkmenistan

Eurasia 031097

Sensor Transportation Apparatus and Guide Device
ТРАНСПОРТИРОВОЧНОЕ УСТРОЙСТВО И НАПРАВЛЯЮЩЕЕ УСТРОЙСТВО


Note: Any party (e.g., wireline service company, E&P operator or conveyance accessory provider) that manufactures, imports, offers for sale, sells, or uses any Petromac patented technology, without permission or licence from Petromac, is considered to infringe the patented technology. If you wish to understand more, please feel free to contact us.
