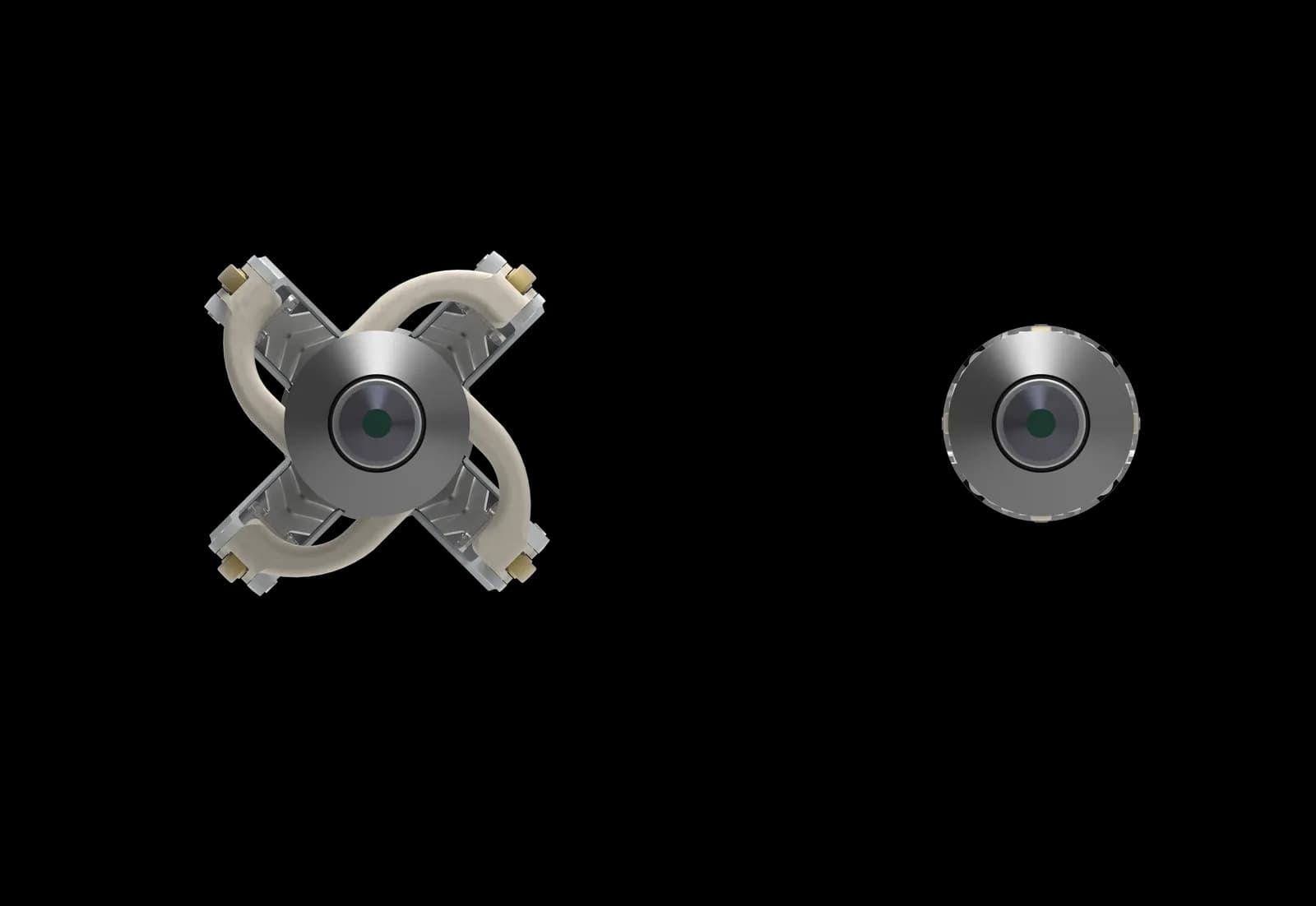

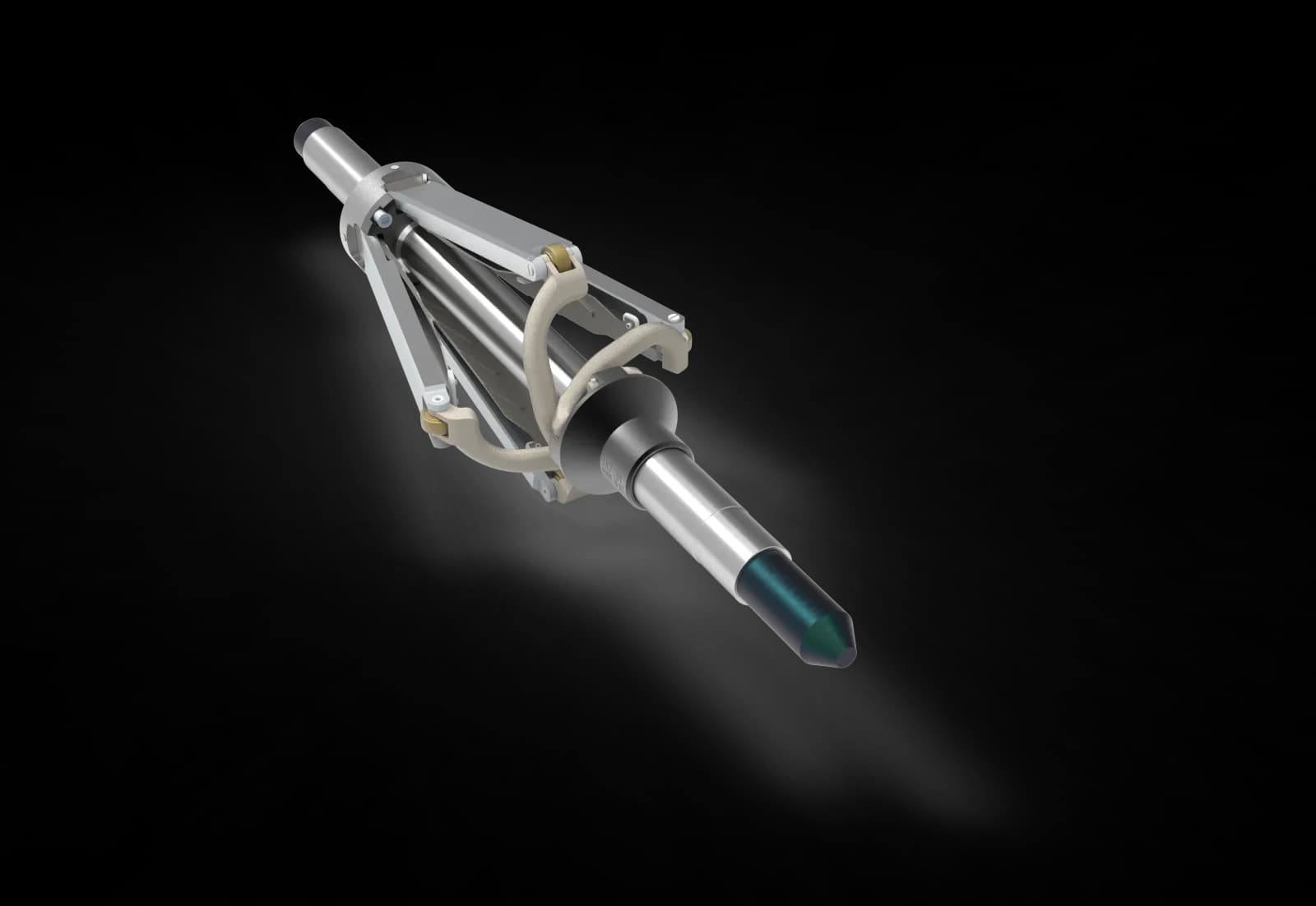

CX7 — Helix Centraliser
Patented Helix mechanism for 5” to 8-5/8” casing — production and through-tubing centralization in a single run.
Description
The CX7 HELIX centraliser is the latest addition to the FOCUS™ range of precision centralisers. With Petromac’s patented “Helix” mechanism and ultra-low-drag custom bearings, the CX7 delivers unparalleled performance in an in-line configuration for small casing or through tubing operations.
The Helix centraliser boasts robust strength and ensures precise centralization of heavy tool-strings in challenging conditions. Unlike conventional centralizers, the CX7 reduces stick-slip and facilitates smooth gravity descent in high deviation wells.
Designed for casing sizes ranging from 5” up to 8-5/8”, the Helix centraliser enables data acquisition in a single run, saving valuable rig time.
Applications
- Precise centralisation of wireline logging tools in casings from 5” to 8-5/8”
- Production or Througtubing applications
- Gravity descent in highly deviated wells
- Stick-slip elimination
Specifications
| Model | CX7 | |
|---|---|---|
| Weight | 27 lbs | |
| Make up length | 25.5” (0.65m) | |
| Volume | 0.06ft3 | |
| Min. Casing Size | Max. Casing size | |
| Adjustable Casing Range | 5”- #24 (ID 4”) | 8-⁵/8”- #32 (ID 7.921”) |
| Load carry capability range1 | 100 lbs | |
| Drag Coefficient, dynamic | 3% | |
| Drag Force | 6 lbs | |
| Temperature rating | 400°F | |
| Pressure rating | 20,000 psi | |
| Collapsed OD | 3.7” | |
| Centraliser connection | Titan, 1-³⁄₁₆"-12 GO | |
| Electrical specification | 600VDC / 2A | |
- 1. Capability is dependent on temperature and Casing ID.
| Body | 17-4 PH SS, Heat treated H1075 |
|---|---|
| Bearings | Custom Bush Bearing |
| Grease | Lubriplate 930AA |
| Attachment | In-line |
| SWL, Tensile | 63,000 lbs |
Charts & Diagrams
