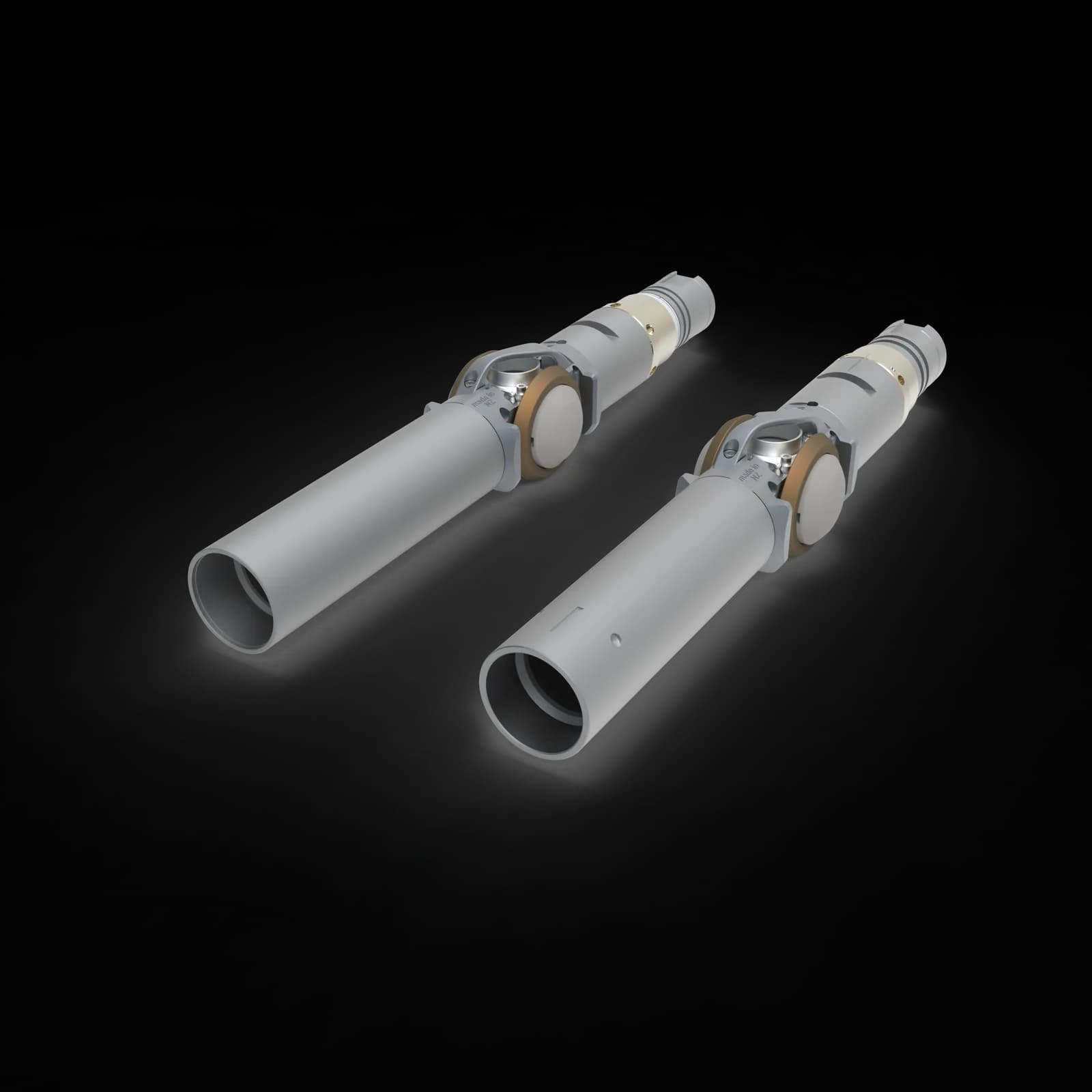

In-line Conveyance Tool Taxi — TTB-ILHC (DITS / LOGIQ)
In-line conveyance taxi for Halliburton DITS and LOGIQ tool strings — greater standoff, run with the in-line orienting taxi in 6”+ wellbores.
Description
TTB-IL6C are in-line conveyance tool taxis designed to reduce drag coefficient of a logging tool string.
Taxis make up in-line, directly to wireline logging tools, without the need for adapters.
The Taxis are designed for use in small wellbores (6.0” +) in conjunction with the In-line orienting taxis. Its design provides greater standoff, allowing the combination of greater-OD tools in the string.
These taxis use low friction custom ball bearings.
Applications
- Gravity logging up to 80° well deviation.
- Stick-slip and cable tension reduction
- Eliminate risk of tool differential sticking by offsetting tools from the borehole
- Robust design. Very low maintenance requirement.
Specifications
| Model | ILHC (DITS or LOGIQ) | IQC (LOGIQ) |
|---|---|---|
| Weight | 47.4 lbs | 42.3 lbs |
| Length1 | 24” | 21” |
| Volume | 0.05ft3 | 0.05ft3 |
| Min. Hole Size | 5-⅞” | |
| Max. Hole size | 8.5” | |
| Drag Coefficient, dynamic | 2% | 2% |
| Drag Coefficient, Static | 4% | 4% |
| Temperature rating | 350°F | |
| Pressure rating | 20,000 psi | |
| Taxi OD | 5-¼” | |
| Wheel diameter | 4” | |

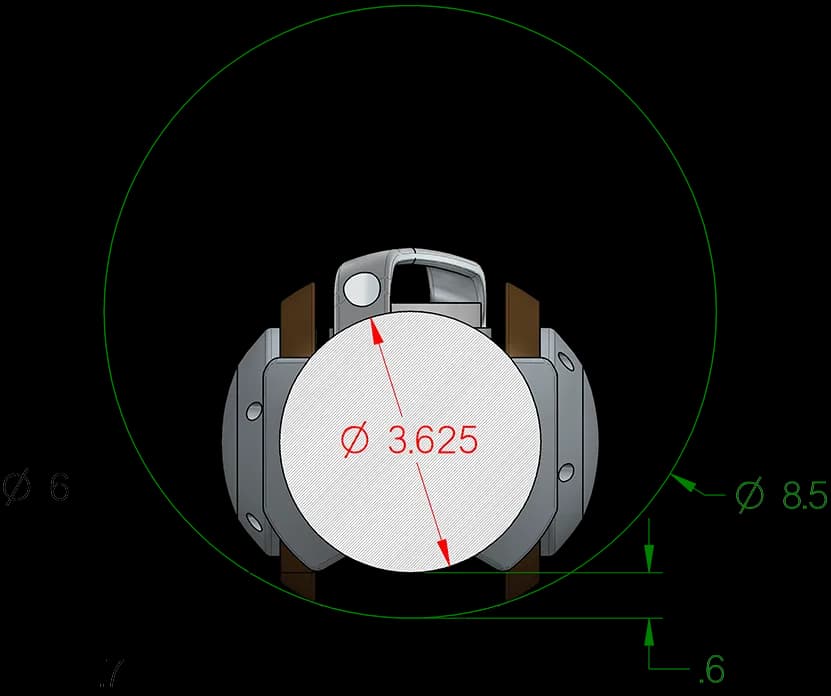

| Standoff in 6” wellbore2 | 0.44” | |
| Connection | In-Line with all through wired tools | |
- 1Alternative Short ILHC version with a length of 18” and a weight of 38 lbs.
- 2For 3-5/8” OD tool housing. Set Standoff parameters to appropriate offset, see table below.
| Body | 17-4 PH SS, Heat treated H1150 |
|---|---|
| Bearings | Custom ball bearing |
| Lubrication | Active Diaphragm, Viton < 480°F |
| Grease | Lubriplate 930AA |
| Fastening | 304 Stainless Steel Cap Screws 1/4”, 3/16” hex UNC thread |
| SWL for fishing | 30,000 lbs |
| Bit Size | Tool Housing OD: | ||
|---|---|---|---|
| 3-3/8” | 3-5/8” | 4-1/2” | |
| 5 7/8” | 0.9" | 0.7" | 0.3” |
| 6” | 0.9” | 0.7” | 0.3” |
| 8 1/2” | 0.8” | 0.6” | 0.2 ” |
| BIT SIZE | ECCENTRALISATION |
|---|---|
| 5 7/8” | 0.4 |
| 6” | 0.45 |
| 6 1/8” | 0.5 |
