Weight Bars

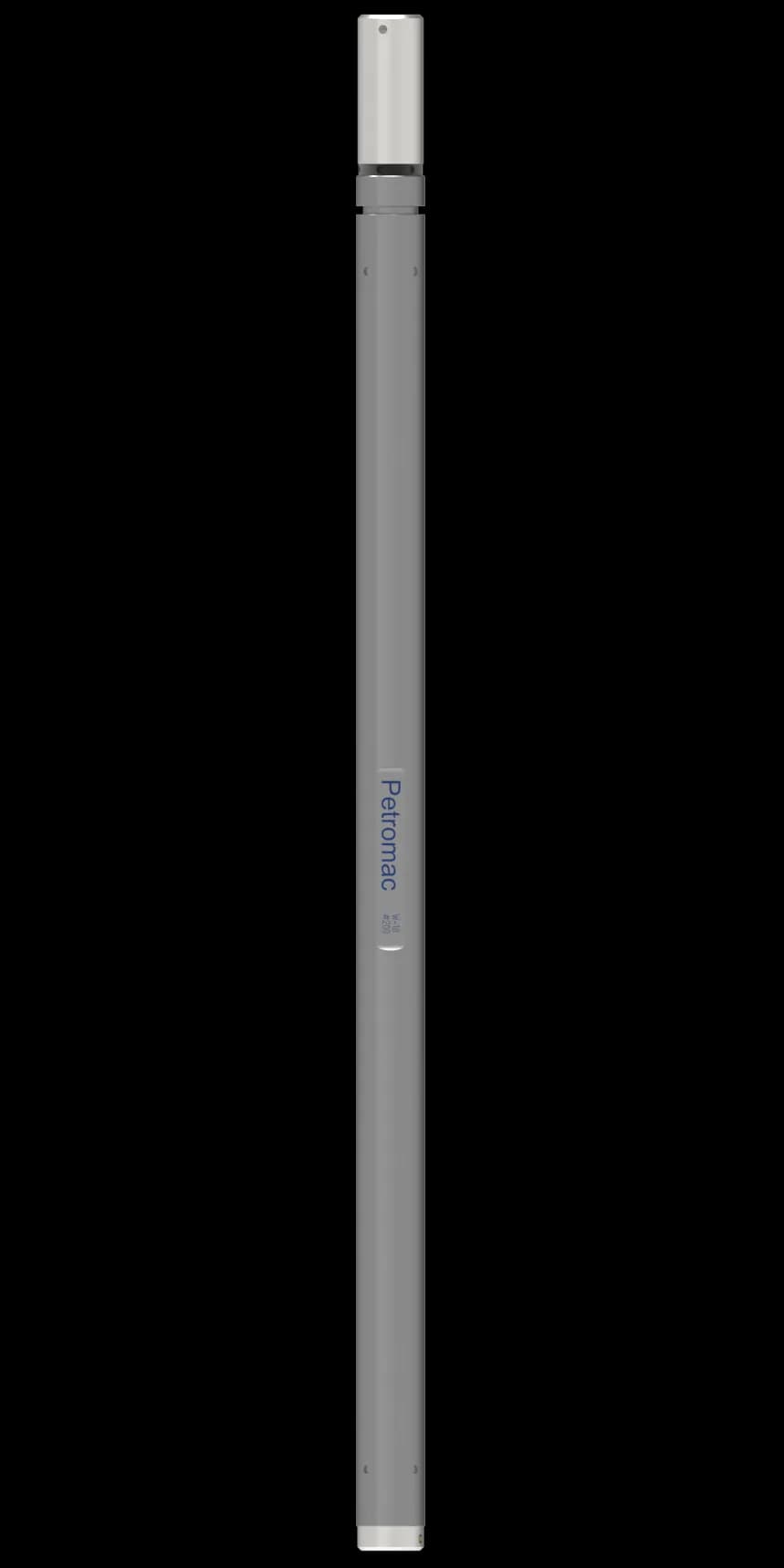

W180 — 180 lbf Weight Bar
186 lbf, 72” make-up length weight bar for adding string weight in deviated wells.
W180
Description
In-line weight bar adding 186 lbf to the tool string for gravity descent in deviated wells.
Specifications
| Model | W18 |
|---|---|
| Weight | 186 lbf |
| Make up Length | 72 in |
| Volume | 0.37 cuft |
| Min. Hole Size | 5 in |
| Temperature rating | 350°F |
| Pressure rating | 20,000 psi |
| OD | 3-⅝in |
| Connection | SLB 31 Pin |
| Combinability with special services | MSCT, XL-ROCK, NRTA |
| Material | SS17-4PH |
| SWL for fishing | 30,000 lbf |
