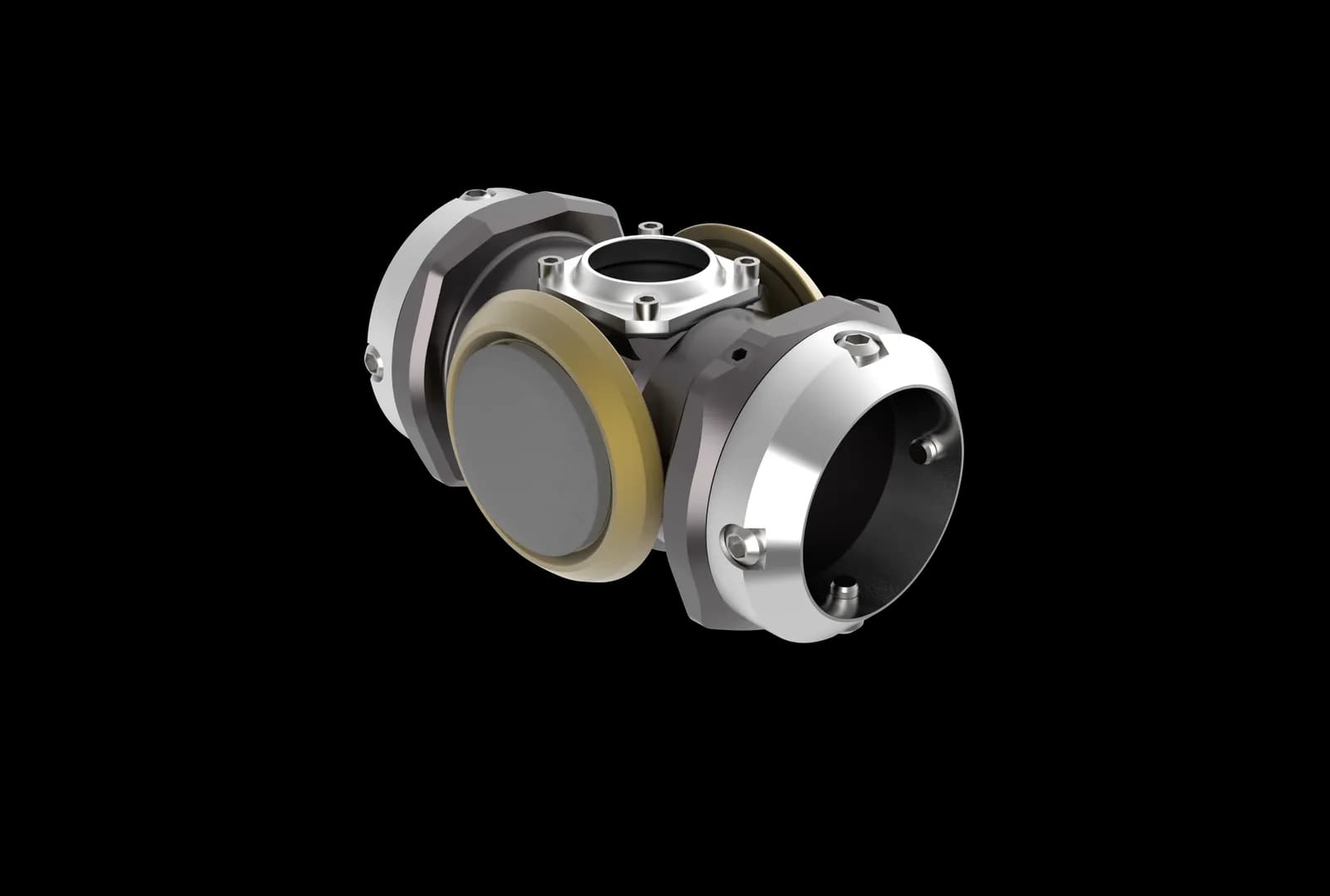

Jar Wheels — TTB-J75 (Thor Jar Taxi)
Slip-over taxi for Petromac Thor jars — carries the jar assembly on wheels and lets it recock freely.
Description
Tool Taxi specifically designed for use with Petromac Thor Jars.
TTB-J 75 are slip-over tool taxis that lock securely on to 4-⅛” tool housings and allow the heavy jar assembly to be fully carried on wheels. The Taxi is free to rotate around the tool body to allow for self alignment.
Taxi wheels run on ball bearings in a sealed, pressure compensated lubricant bath, providing the lowest friction in class.
Applications
- Proven gravity logging up to 80° well deviation using a slip-over wheel design
- Facilitate Jar recocking
- Stick-slip and cable tension reduction
- Eliminate risk of tool differential sticking by offsetting tools from the borehole without the need for additional tool body standoffs
- Robust design with a very low maintenance requirement
Specifications
| Model | TTB-J 75 |
|---|---|
| Weight | 33 lbs |
| Length | 11.4” |
| Volume | 0.07ft3 |
| Min. Hole Size | 8-¼” |
| Max. Hole size | 14.75” |
| Drag Coefficient, dynamic | 2% |
| Drag Coefficient, Static | 4% |
| Temperature rating | 400°F |
| Pressure rating | 30,000 psi |
| Taxi OD | 7-½” |
| Wheel diameter | 5.5” |
| Taxi Bore | 4-1/8” |
| Body | 17-4 PH SS, Heat treated H1075 |
|---|---|
| Bearings | Custom ball bearing |
| Lubrication | Active Diaphragm, Viton < 480°F |
| Grease | Lubriplate 930AA |
| Fastening | 304 Stainless Steel Cap Screws 1/4”, 3/16” hex UNC thread |
| Attachment | Alloy Steel grub Screw , 5/8” UNC-11, Dog end type |
| SWL for fishing | 50,000 lbs |
| SWL Shear Set Screws1 | 34,000 lbs |
- 1Four Screws are used to secure each stop ring, each screw can take a shear force of 8,500lb.

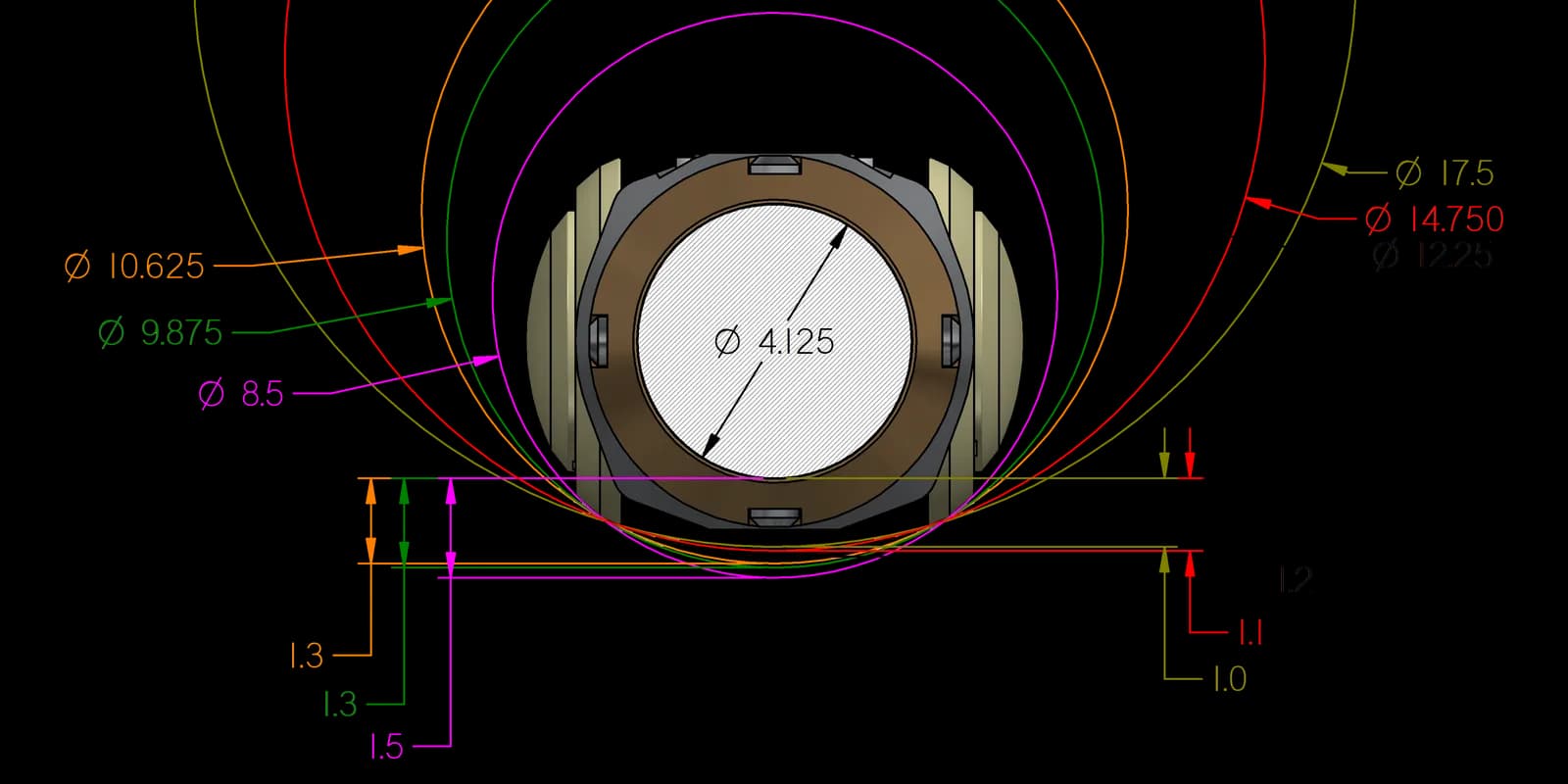

| Bit Size | Tool Housing OD: |
|---|---|
| 4-1/8” | |
| 8 1/2” | 1.5” |
| 12 1/4” | 1.2” |
| 14 3/4” | 1.1” |
| 17 1/2” | 1” |
Charts & Diagrams
